Ferrous contamination in EV battery powders is typically introduced through wear in milling, blending, and conveying equipment. Even microscopic metal particles can puncture separator membranes, leading to internal short circuits, thermal runaway, and cell failure. Effective contamination control requires removing both oversized particles and fine ferrous debris at multiple stages of the manufacturing process. It uses a combination of precise screening and high-strength magnetic separation.
Why is metal particle contamination a risk in EV battery manufacturing
The lithium cell has a separator membrane, typically 10–25 microns thick, that sits between the cathode and anode. A ferrous particle larger than this membrane can puncture it, creating a direct electrical path between the electrodes. This internal short circuit generates heat and, in severe cases, triggers thermal runaway. As global demand for EV batteries increases, controlling metal particle contamination in battery-grade powders is now a critical process requirement.
Why is ferrous contamination control critical in EV battery manufacturing
Materials most at risk include cathode active powders such as NMC, NCA, and LFP, as well as black mass from recycled cells. These powders are processed at particle sizes between 5 and 30 microns. It makes metallic particle contamination invisible to the naked eye but highly damaging inside a battery cell. A single contaminated batch reaching the coating stage can result in cell rejection, line downtime, and significant material loss.
Where do fine metal particles enter the EV battery manufacturing process
Metallic wear debris can enter the process stream at multiple points. Milling and grinding equipment generate fine iron and steel particles. Blending and conveying systems introduce further wear. Each powder transfer point represents a potential contamination event, and in high-volume production, the cumulative effect across all stages is significant.
Controlling particle entry at every stage is not just the final quality check; it’s the industry standard. Key intervention points include:
- Raw material intake: screening incoming cathode and anode powders before they enter the production line
- Post-milling: capturing wear debris generated by size reduction equipment
- Pre-coating: final verification before slurry preparation
- Off-specification material reprocessing: screening returned material before reintroduction
- Black mass processing: classifying recycled battery material for re-entry into the supply chain
- Tanker loading: preventing metal particle entry during bulk powder transfer
According to research published in the Editorial Board. (2025). Journal of Power Sources, 658, p.238668. doi:https://doi.org/10.1016/s0378-7753(25)02504-2. and Chen et al., 2024, metallic foreign matter is one of the primary manufacturing defects responsible for internal short circuits in lithium-ion cells. Therefore, contamination control at the powder stage is the most effective point of intervention.
What equipment is used for separating lithium battery powder and ferrous contamination control?
Our Russell Compact Sieve®, integrated with the Russell Easy-Clean Magnetic Separator™, delivers a complete solution for cathode powder contamination control. The Russell Compact Sieve® removes oversized particles and agglomerates using mesh apertures down to 20 microns. This comes with an optional Russell Vibrasonic® Deblinding System, which enables continuous screening of fine battery powders without mesh blinding. Our Russell Easy-Clean Magnetic Separator™ works alongside it, capturing ferrous and paramagnetic wear particles using rare-earth magnets at a minimum field strength of 8,000 Gauss.
Together, the two pieces of equipment provide precise size classification and continuous removal of ferrous particles in a single, fully contained unit. This makes the unit suitable for integration at every stage of the battery powder process, from raw material intake to tanker loading. This removes the need for separate inspection stages and lowers the risk of cross-contamination across the process.
How to protect operators from nickel and cobalt dust during battery powder processing
Nickel and cobalt compounds used in NMC and NCA powders are classified as carcinogenic, mutagenic, and reprotoxic (CMR) under international occupational health standards. Occupational exposure limits, for cobalt dust are tightly controlled across all major manufacturing regions worldwide. Our Russell Compact Sieve® features an enclosed design for total product containment and tool-free disassembly for safe and rapid mesh changes. It also allows dust extraction connection options to safeguard operators from hazardous powder exposure. Our equipment is ATEX certified for zone 0 internal and 21,22,1 and 2 external, available for lithium-based powder processing in potentially explosive atmospheres.
Test your battery powders at one of our technical centres
Selecting the right contamination control system for your EV battery powder line is a critical decision. Our specialist testing and research centres remove the guesswork. We invite you to test your material, whether cathode powder, anode powder, or black mass, at one of our technical centres Our engineers will process your samples to verify mesh performance, ferrous removal efficiency, and production capacity before you commit to a purchase.
Contact us at enquiriesrfl@russellfinex.com or call +44 (0) 20 8818 2000 to discuss your EV battery powder application and arrange a sample test.
Recommended products
EV Battery
Russell Compact Sieve®
Russell Easy-Clean Magnetic Separator™

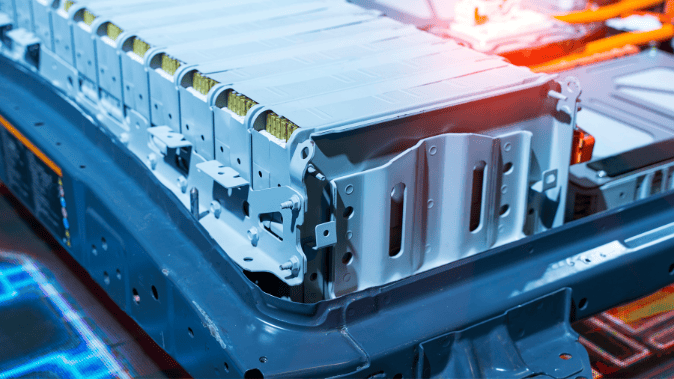

Precision sieving and filtration solutions for EV battery manufacturing
Efficient removal of fine metal contamination from powders
Sieving lithium nickel manganese cobalt oxide powder (NMC)
Frequently asked questions:
My magnets are still allowing fine iron particles through into the NMC powder. How does the Russell Finex solutions drive ferrous contamination down to the levels cell manufacturers demand?
Our Russell Compact Sieve®, paired with our Russell Easy-Clean Magnetic Separator™ at 8,000 Gauss, captures fine ferrous and paramagnetic particles that standard magnets at 3,000–5,000 Gauss often miss. This fully contained unit helps cell manufacturers remove contamination at the source and ensure that NMC powder meets the required purity levels.
What Gauss strength is needed to capture paramagnetic stainless steel wear particles in battery powder, not just ferromagnetic iron?
A minimum of 8,000 Gauss using rare-earth magnetic elements is needed to capture paramagnetic particles. Standard ferrite magnets at 3,000–5,000 Gauss capture ferromagnetic iron but are insufficient for paramagnetic 304 stainless steel wear debris.
What mesh size is recommended for screening NMC, NCA, and LFP cathode powders?
For NMC and NCA powders with a D90 of 15–20 microns, a 38 µm or 63 µm aperture mesh is standard. For coarser LFP materials, 100 µm to 150 µm meshes are typical.
Is the Russell Compact Sieve® suitable for black mass powder screening in battery recycling?
Yes. Our Russell Compact Sieve® is suitable for black mass powder screening in battery recycling. It removes oversized particles and agglomerates at a defined mesh aperture, ensuring consistent powder quality. The Russell Easy-Clean Magnetic Separator™ works alongside it to remove ferrous wear particles introduced during shredding and size reduction.
How does the Russell Compact Sieve® protect operators from nickel and cobalt dust during battery powder processing?
Our Russell Compact Sieve® uses a fully sealed design with integrated dust extraction and contained mesh-change procedures. ATEX-rated configurations certified for zone 0 internal and 21,22,1 and 2 external, are available for potentially explosive atmospheres.
Why does conventional vibratory sieving blind so quickly on fine cathode powder, and how does Russell Finex address this?
Conventional vibratory sieving blinds quickly on fine cathode powders because particles at micron-level sizes tend to adhere to the mesh surface. This is due to electrostatic charge and cohesive forces, blocking apertures.
Our Russell Compact Sieve® uses a side-mounted motor to vibrate the mesh, with a straight-through design that delivers higher sieving rates and lower operating noise via rubber vibration mounts. The optional Russell Vibrasonic® Deblinding System applies high-frequency vibrations directly to the mesh, preventing particle adhesion and maintaining a consistent flow rate without manual intervention.
At what stages of the battery powder process should the Russell Compact Sieve® be integrated?
Our Russell Compact Sieve® should be integrated at every powder transfer point. This is at raw material intake, post-milling, pre-coating, off-specification material reprocessing, black mass processing, and tanker loading.
