Bag dump sieve station

Featured industries served by the Bag dump station - 3in1 Sieve: Food & Beverage, Pharmaceuticals

Bag tipping platform for hand fed raw ingredients from bags

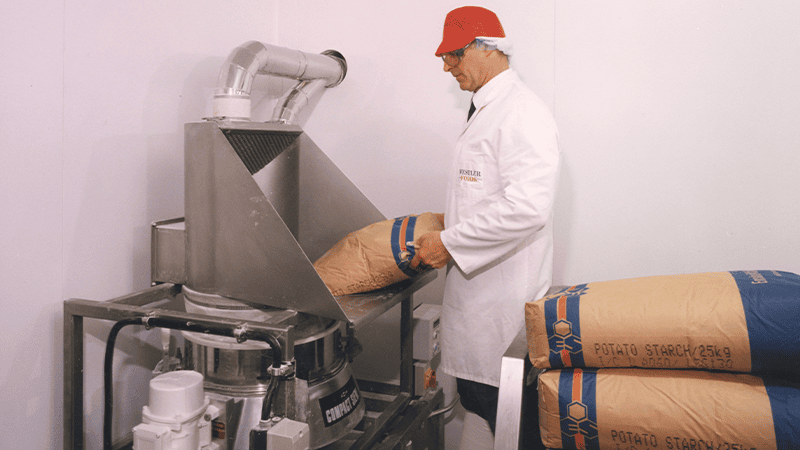

The Russell Compact 3in1 Sieve™ has been specifically designed to sieve hand fed ingredients through low-level bag emptying, where operator protection is essential and product quality must be beyond criticism. Due to its straight-through design and optimum clearance between the sieve outlet and your floor, the 3in1 can fit neatly into your production process.

Contact us for more information on how these 3in1 bag dump screeners can help you with your unique requirements.

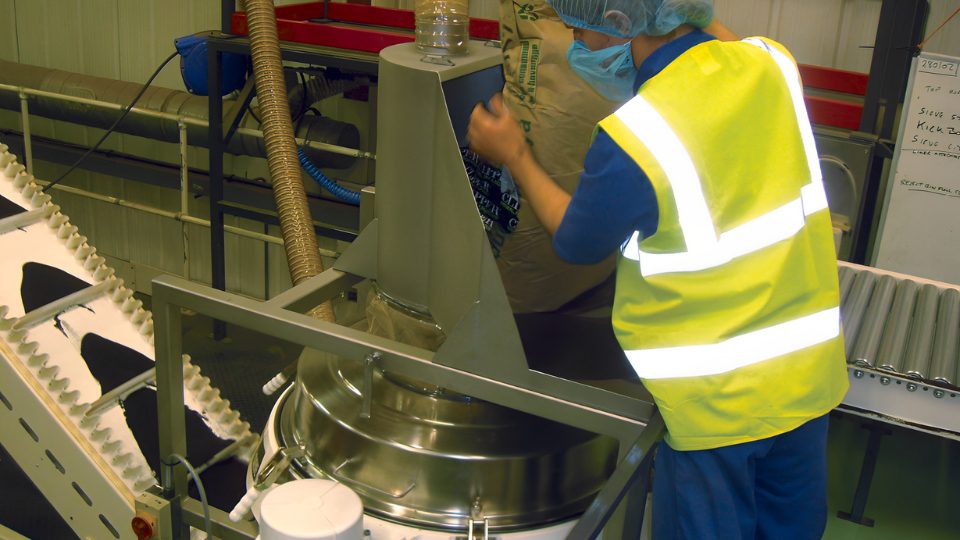

How it works

  • The Bag tipping platform with integrated dust hood - Safeguards the health of your operators with a comfortable tipping height for 25kg bags, following Health and Safety Executive guidance on manual handling tasks. In addition, the dust hood allows for connection to a dust extraction system, safeguarding your operators’ health and safety.

  • The Russell Compact Sieve® - Provides high performance screening, ensuring the quality of your ingredients by removing oversize contamination.

  • The Magnetic Separator™ – Available in standard and rare earth options, the trap catches ferrous particles smaller than the mesh size, complying with provisions of the Food & Safety Act 1990.



 Features & Benefits


  • Reduces downtime - Easy to disassemble and clean without the need for tools

  • Meets your requirements - Supplied with magnetically detectable interchangeable meshes to suit various application requirements

  • Safeguards operators - A low level bag tipping point allows safe loading with one operator

  • Protects your working environment - Connect a dust extraction unit to the dust hood for quick removal of dusts

View our complete range of Russell Compact Sieves and other check screening sieving machines.

Upgrades available

  • Clamping Systems

    Clamping Systems

    The Russell Superclamp™ and other clamping systems are designed to reduce product con…

    View
  • Magnetic Separators

    Magnetic Separators

    High quality, sanitary design magnetic separators for the control of ferrous contamin…

    View

View more Upgrades

Case Study:

Bespoke bag dumping sieve station helps increase production and safeguard operator safety for a sports nutrition products manufacturing company

Sports nutrition has been a growing industry over the last couple of decades, with more and more people investing in their health and wellbeing. When a health supplements producer was looking to expand their production capacity to meet increased demand, the company turned to the global leader in sieving and separation technology, Russell Finex, for a solution.

The sieving solution needed to be flexible enough to be used at two separate stages of the production process – when raw ingredients enter the factory and before the final product is packaged. For both stages, the company required a bag dump sieve platform that was capable of handling bulk bags of material.

After consultation with Russell Finex engineers, a bespoke version of the Russell Compact 3in1 Sieve™ was supplied, a bag dumping and sieving platform specifically designed to safety sieve hand-fed ingredients through low-level bag emptying.

Customized sack tipping sieve station from Russell FinexThe Russell Compact 3in1 Sieve™, usually supplied with a 600mm diameter sieve unit, was upscaled to a 900mm diameter sieve to meet the application requirements. The larger surface area of the sieve provides efficient screening at a required throughput of 2 tonnes/h, whilst the larger motor ensures the fatty and sticky powders do not block the mesh, by transferring stronger vibrations to the mesh area.

Operator health and safety was a key concern for the company. With the larger bag tipping platform operators are able to safely tip 25kg bags, meeting the Health and Safety Executive guidance on manual handling tasks. In addition, its integrated dust hood allows for connection to a dust extraction system, protecting operators from potentially harmful fine dusts during sack tipping.

A further key requirement for the sieving solution was ease of use and maintenance. With a quick-release clamping system, the Russell Compact 3in1 Sieve™ allows for tool-free access to the mesh ensuring minimal downtime for cleaning and inspection. In addition, instead of a standard bag tip platform that is bolted directly on top of the sieve, the platform was modified for tool-free disassembly.  The operator can then safely lift the whole tipping platform clear of the sieve unit to access the mesh.

The customized bag dump station fulfilled all of the company’s requirements, resulting in an order of 13 machines for use at facilities across the world. By checking the quality of both the incoming raw ingredients and the final product before packaging, the customer can ensure that their product is of the highest quality and their reputation is safeguarded.

Russell Finex has more than 85 years of experience in providing high-quality customized sieving solutions for the food and beverage industry. The company works closely with manufacturers in the industry to make sure their rapidly evolving needs are met. To learn more about customized separation solutions and how Russell Finex can improve your production processes, contact an experienced sales engineer today.
